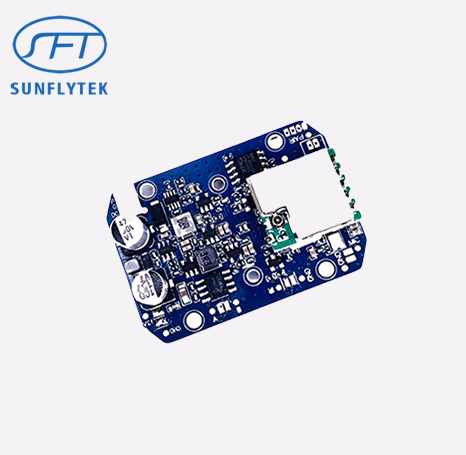

2.4G无线数字发射模组DV7300T

传输方式:数字无线

无线频段:2.4G

产品型号:DV7300T

应用领域:车载后视、安防监控等

联系我们
产品详情

ITEM

DV7300T-60

DV7313R-LHD

直流特性DC Characteristics

供电电压(POWER SUPPLY)

DC +12~+36V

DC +12~+50V

耗电流(Current Consumption)

210±20mA @DC 12V

400±20mA @DC 12V

工作环境Environmental Specification

工作温度(Operating Temperature

-20~+70 ºC

存储温度(Storing Temperature

-30~+85 ºC

工作湿度(Operating humidity

85%RH

基带数字规格(BASEBANGD SPEC.

开机时间(POWER ON

3S Min.

延迟时间(Latency

180mS Max.

图像传感器(Image Sensor

1/2.9

-

像素阵列(Pixel Array

1920*1080

-

身份识别(ID

对码(Pairing

视频帧率(Frame Rate

30FPS

显示模式

可选择单画面、二分割、三分割、四分割

视频输阻抗Video Output impedance

75Ω, Typ.

视频频率响应(Video Frequency   Response

±5 dB, Max. 50Hz ~ 6MHz

音频编解码器(Audio Codec

16 Bit Sigma Delta ADC & 10 Bit R2R   DAC

配对(Pair

身份识别(ID/位数(BIT

对码(Pairing/ 22(4KK)

配对方式(Pair Method

自动/手动(Auto/Manual

菜单操作(Menu Operation

射频规格(RF SPEC.

Frequency   Band

2.412~2.4835 GHz ISM Band

Modulation   Method

CCK

Standard

802.11b

Wireless data rate

11Mbps

Spread   Spectrum

IEEE   802.11b: DSSS (Direct Sequence Spread Spectrum)

RF Output   Power

20dBm ±1dBm

Working Mode

Ad-Hoc

Receiver   Sensitivity

11Mbps-86dBm@8%

Security

WPA

Operation Range

Up to 350 meters   in open space

天线输入输出阻抗(RF Impedance

50Ω, Typ.

Antenna Type

Connect to the external antenna through the IPEX connector

RSSI显示级数(RSSI Level

4

输入/输出驻波比Voltage   Standing Wave Ratio

2:1

尺寸(Size

48mm(L)*33mm(W)

72mm*55mm
